Multipurpose machine
Nova Combi
Seed drill
Nova Combi

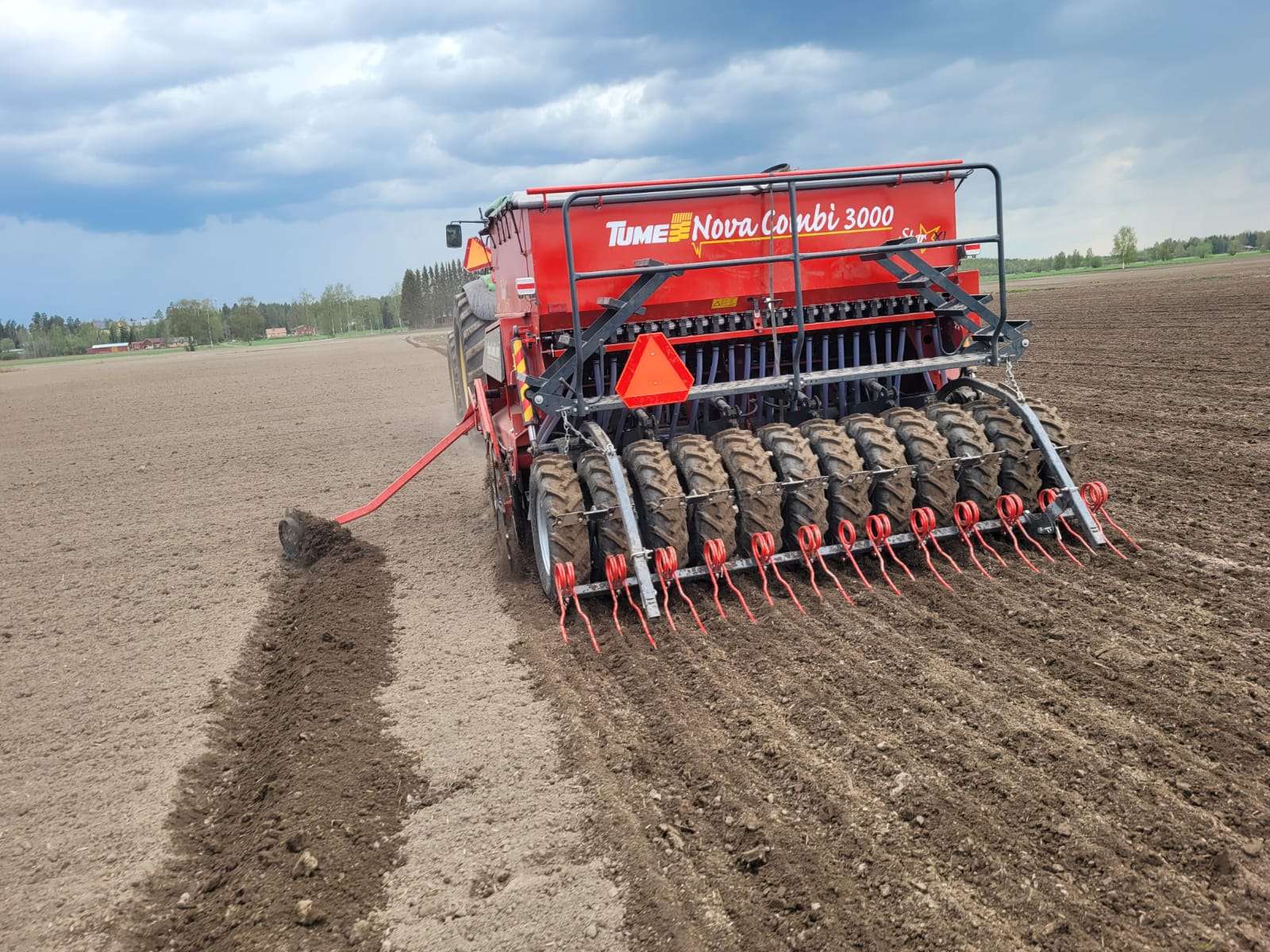

Nova Combi is a multipurpose seed and fertiliser drill for all cultivation methods and soil types. The machine is suitable for direct seed sowing, minimum harrowing and traditional seed sowing.Known for its seed sowing accuracy and efficiency, Nova Combi has enjoyed success in tests and competitions around the world.
Nova Combi features the only seed and fertilizer drill with a wheel in front of the coulters. The wheel adjusts and maintains seed sowing depth, enabling more even sprouting. Harrowing depth changes have no impact on seed sowing depth
In Nova Combi, both the seeds and the fertilizer are fed into the same dual disk coulter and then slightly separated from each other within the coulter. This reduces the risk of phytotoxicity.
Support wheel set is very spacious, it follows the shape of the field surface and rolls it with even pressure. It conforms to the field surface by hydraulic pressure and closes the seed furrow precisely, because each support wheel works as a closing wheel at the same time. Nova Combi 3000 has 6 wheel pairs and NC 4000 has 8 wheel pairs.
Savings in all areas
- Small tractive resistance; easy to pull even with engine power below 90hp. Significant savings in tractor and fuel costs.
- Significant fertilizer savings in fertilizer application.
Consistently accurate seed sowing depth
- Field surface variations have no impact on seed sowing depth in driving or seed sowing direction
- Hopper fill level does not impact seed sowing depth
- Driving speed does not impact seed sowing depth
Sturdy, debris-proof coulters
- Sturdy coulter arms
- Coulter weight can be adjusted during runtime. Maximum weight 200kg/coulter
Easy to adjust and use
- Working depth is easy to adjust in front of the coulter pair
- The easiest, quickest rotation test on the market; one crank and troughs that open from the sides
| Nova Combi 3000 | Nova Combi 4000 | |
|---|---|---|
|
Working width cm |
300 |
400 |
|
Hopper capacity l |
3250/4240(XL hopper) |
4500 |
|
Basic unit weight kg
|
3750 |
5475 |
|
Power requirement hp/kw
|
90/66 |
120/88 |
|
Double-disc coulters
|
24 pcs, Ø 360/400 mm |
32 pcs, Ø 360/400 mm |
|
– Pressure range, kg |
40–200 |
40–200 |
|
– Runtime weighting adjustment |
Standard feature with computer |
Standard feature with computer |
|
Fertilizer/seed feeder
|
Fluted rollers, 100 positions |
Fluted rollers, 100 positions |
|
– Bottom valves |
adjustable, spring-loaded |
adjustable, spring-loaded |
|
–Feeder usage |
Ground wheel on the side of the machine |
Ground wheel on the side of the machine |
|
Number of working depth adjustment wheels |
12 |
16 |
|
– Wheel size |
18,5 x 8,50 – 8 AW |
18,5 x 8,50 – 8 AW |
|
Support wheels |
12 pcs, in groups of two, Adaptive structure |
16 pcs, in groups of two, Adaptive structure |
|
– Wheel size |
7,50–16 AS |
7,50–16 AS |
Standard equipment
- 7,5-16″ support wheel gear
- TC-controller that axles rotation control, level control of the hoppers, control of the markers, makes the tramlines for spraying, hectare counter and function of rear harrow. TC has one camera as a standard equipment.
- Coulter pressure adjustment (40-200 kg) from controller
- Fertilizer and seed to the same coulter
- Double disc coulters 400/360
- Available also with 360/360 disc coulters
- Self operating tarpaulin
- 8,5 X 8,5 -8 depth adjustment wheels
- Front and back railing
- Back step level
- Injection furrow switchs for seed and fertilization
- Hydraulically operated rear harrow with automatic reverse protector
- Pull from the tractor’s hitch
- Manual adjustment of seed and fertilizer
- Seed- and fertilizer sieves
NOTICE! The standard equipment does not include an Isobus terminal
Optional equipment,
Click image bigger!
 |
Hydraulic markers Makes the driving line for next pull, don’t need to estimate. |
 |
Computer TC Plus Axles rotation control, level control of the hoppers, control of the markers, makes the tramlines for spraying, hectare counter and function of rear harrow. TC Plus includes also the fertilizer adjusting. |
 |
Grass seed unit Possible to drill grass seeds simultaneously with grain seeding and fertilizing. |
 |
Intermediate wheel packer Press the field surface between the tractor wheels. |
 |
Agitator for fertilizer and seed Ensure the material flow to feeding units. |
 |
Hydraulic front levelling board Finish the surface of the field for drilling. |
 |
Hydraulic rear harrow |
 |
Front steps Makes the filling of the hopper easier. |
 |
Extra-slow transmission Possible to sow very little seed quantity app to 3 kg/ha. |
 |
CultiPack disc harrow Harrowing work simultaneously with drilling. |
 |
Front and rear rail Makes the filling of the hopper safer. |
| HD-Front wheels |
|
|
XL size extra hopper |
Transports width
The overall width of Nova Combi is the same as the working width, 3 or 4 meters. Nova Combi can easily be transported from one field to another without trouble.
Always accurate seeding depth
Seeding and fertilising depth is adjusted with a large wheel in front of each coulter unit. This wheel also compacts the soil. Since the steering takes place ahead of the coulters, there is enough time to adjust the working depth to match to the soil level variations. Neither the seed furrow of the coulters nor, the driving speed or the filling level of the hoppers have no effect on the sowing depth. The front wheel compacts the soil ahead of the coulter ensuring non-blocking operation and seeding into intact soil.
Large hoppers
The total volume of the Nova Combi easy-to-fill hoppers is over 1,000 litres per one meter of working width. The hopper is divided into two compartments with an adjustable divider wall between them. It is easy to fill the hopper because the filling doors are large (also in the driving direction) and the tarpaulin covers can be rolled open. Sieves for both the seed a
TC-controller
Monitors the rotation of the feed shafts, the emptying of the tanks, controls the markers, makes spraying groves and measures areas. Electronic remote control of fertilizer. Reversing camera: a camera in the tank is also available as an option.
UNPARALLELED POWER AND ECONOMY.
In Nova Combi seeds and fertiliser are fed into the same coulter, but the double-disc solution developed by Tume keeps them apart. Because there are no separate fertiliser coulters and all parts of the double-discs working in the soil rotate, the pulling power requirement of Nova Combi is up to 30 % lower. Low pulling resistance saves fuel up to 5 litres per hectare and if you switch to Nova Combi you don’t necessarily need to upgrade your tractor to a stronger one. The maximum coulter pressure in Nova Combi is sufficient in all conditions, about 200 kg.
Compare Nova Combi models and choose
| Nova Combi 3000 | Nova Combi 4000 | |
|---|---|---|
|
Working width, cm |
300 |
400 |
|
Hopper capacity, l |
3250/4240(XL hopper) |
4500 |
|
Basic unit weight, kg |
3750 |
5475 |
|
Power requirement hp/kw |
90/66 |
120/88 |
|
Double-disc coulters |
24 pcs, Ø 360/400 mm |
32 pcs, Ø 360/400 mm |
|
-Pressure range, kg |
40–200 |
40–200 |
|
-Runtime weight adjustment |
Standard feature with computer |
Standard feature with computer |
|
Fertilizer/seed feeder |
Fluted rollers, 100 positions |
Fluted rollers, 100 positions |
|
–Bottom valves
|
Adjustable, with springs |
Adjustable, with springs |
|
–Feeder usage |
Ground wheel on the side of the machine |
Ground wheel on the side of the machine |
|
Number of working depth adjustment wheels |
12 |
16 |
|
– Wheel size |
18,5 x 8,50 – 8 AW |
18,5 x 8,50 – 8 AW |
|
Support wheels |
12 pcs, in groups of two, Adaptive structure |
16 pcs, in groups of two, Adaptive structure |
|
–Wheel size |
7,50–16 AS |
7,50–16 AS |
