SUPER NOVA COMBI
Seed drill
Super Nova Combi

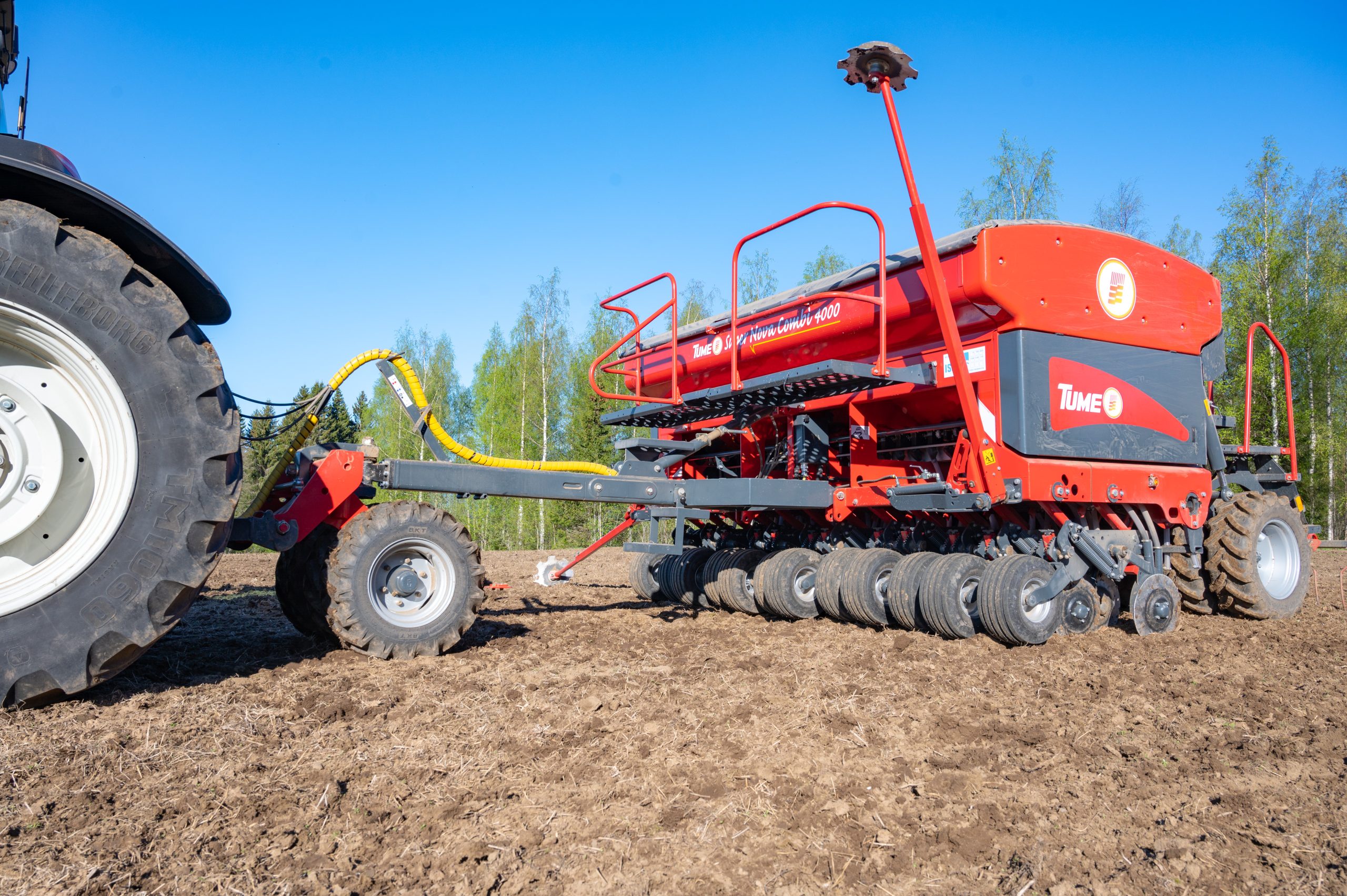

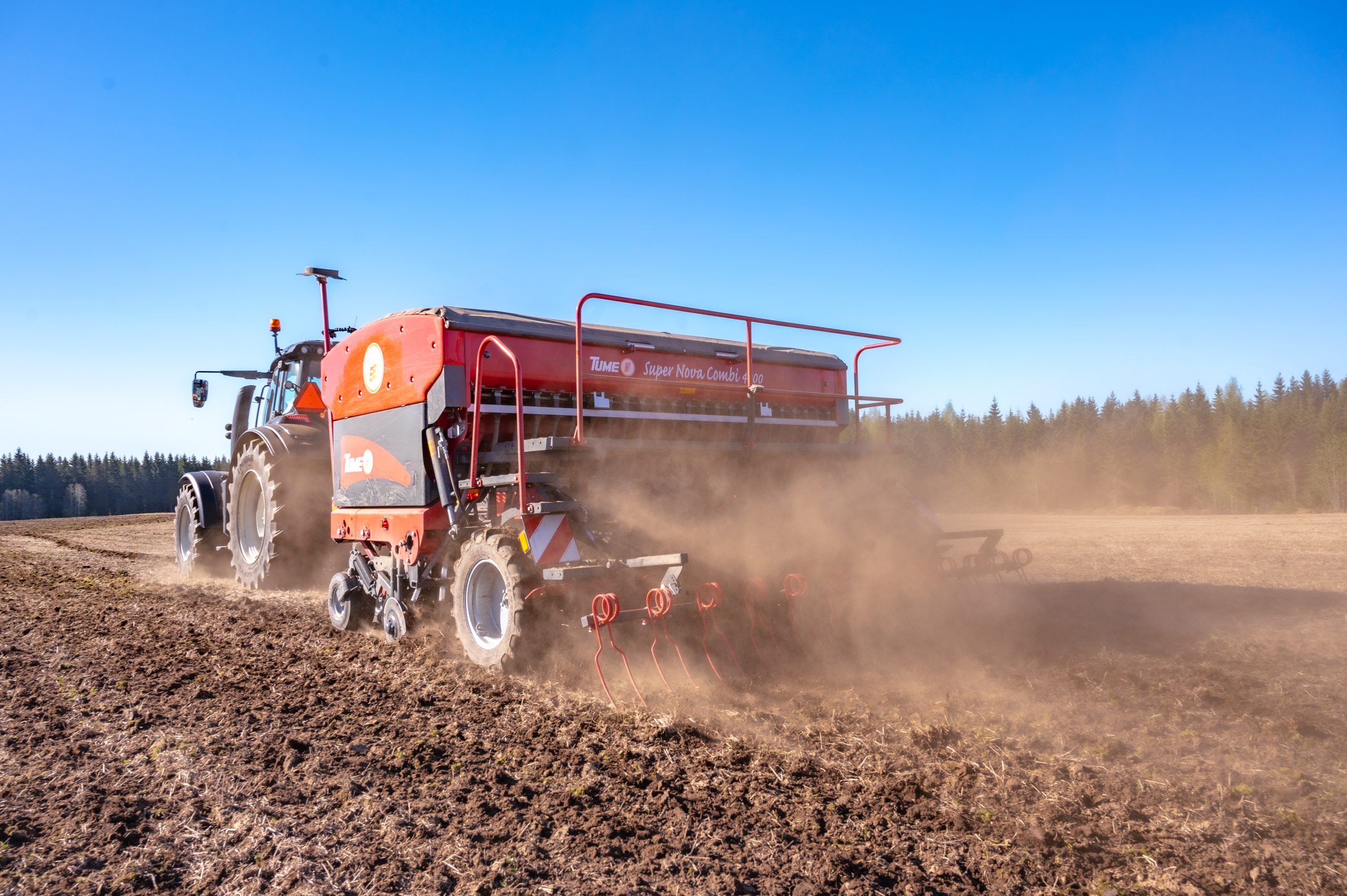

The Tume Super Nova Combi is a multipurpose seed and fertilizer drill for all cultivation methods and soil types. The machine is suitable for direct seed sowing, minimum tillage and traditional seed sowing.
The Super Nova Combi brings farming into the next generation, with its ISOBUS compatibility. Super Nova Combi can be used also with tractors that don’t have ISOBUS. Seed and fertiliser are fed by electric motors, and the machine can be halved on both the right and left side. The size of the hoppers has also been increased: On a 4 m machine, the volume is already over 5.5 m3.

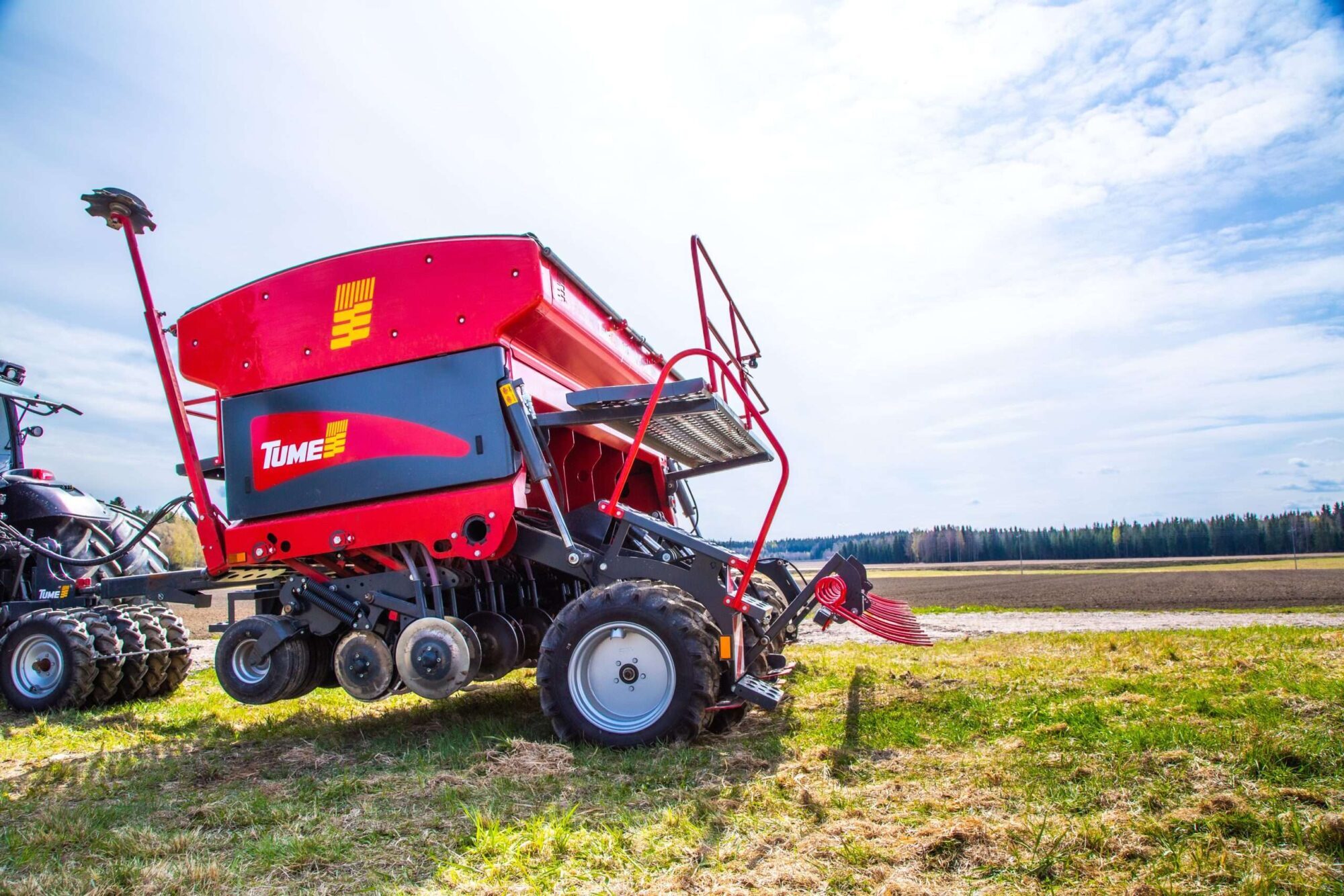

Super Nova Combi is safe to use – it has good platforms, stairs and rails. Spacious construction makes maintenance easier.

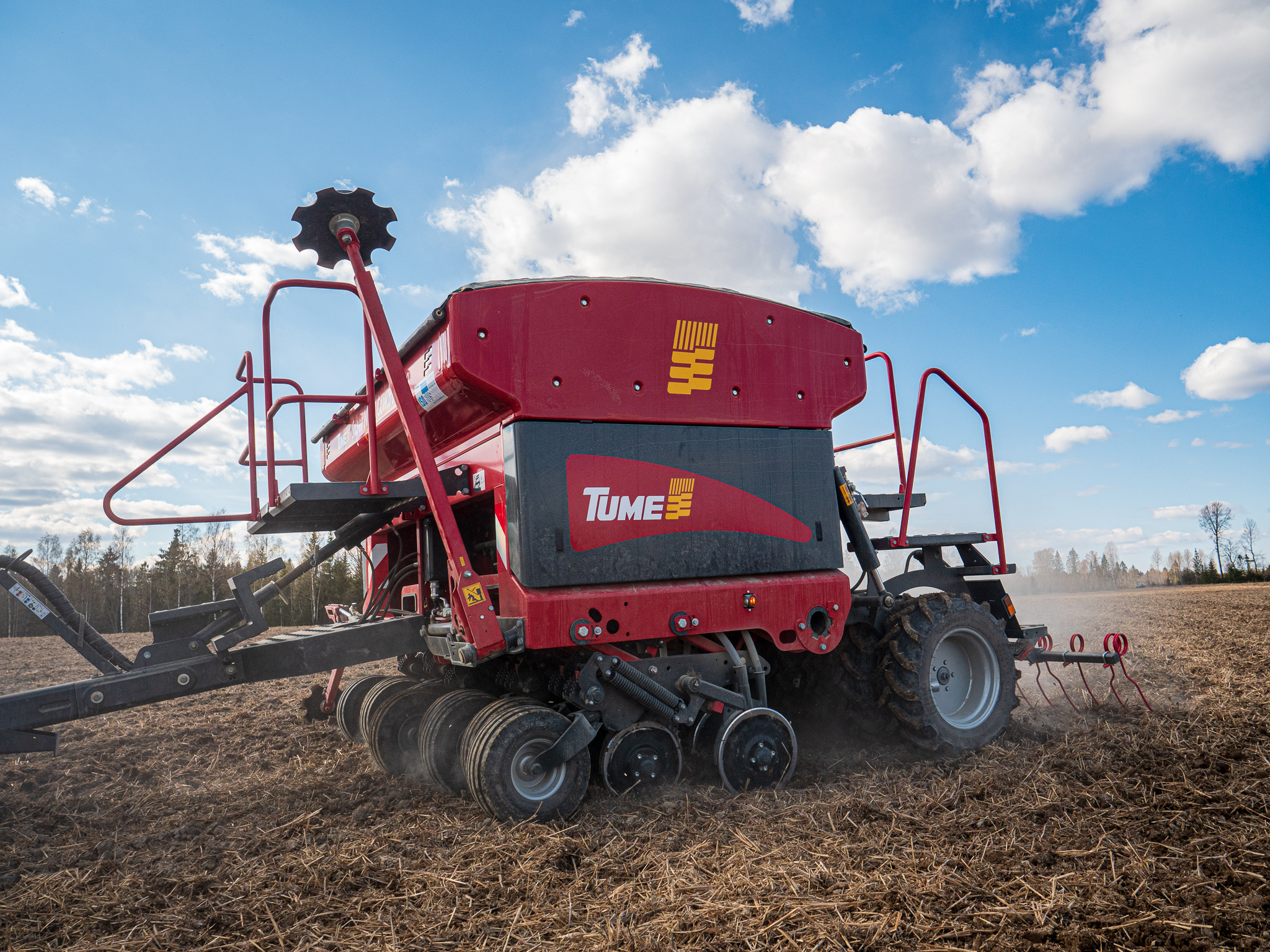

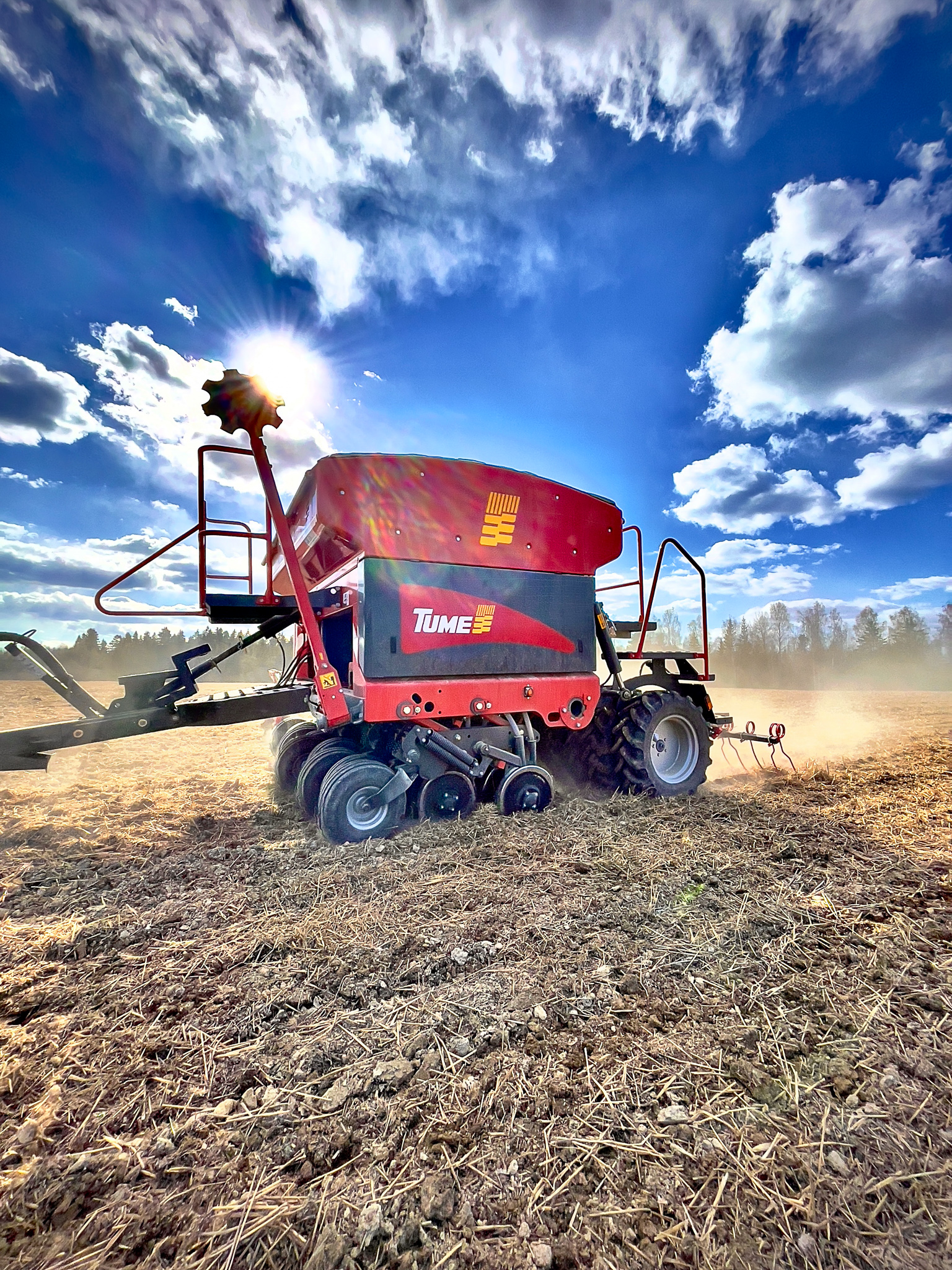

The machine’s coulter penetration and debris – proofness are in a class of their own: The coulters and rear wheels on this machine are staggered in the driving direction.
Support wheel set is very spacious, it follows the shape of the field surface and rolls it with even pressure. It conforms to the field surface by hydraulic pressure and closes the seed furrow precisely, because each support wheel works as a closing wheel at the same time. Super Nova 3000 has 9 wheels and Super Nova 4000 has 12 wheels.
Nova Combi is known for its front wheels. One front wheel guides only two coulters. This allows for significant vertical irregularities in the field while keeping the sowing depth correct. The front wheel presses the straw down before sowing and the wheel reacts by raising the coulters when obstacles are encountered. Sowing depth/germination is not affected by the hopper fill level or driving speed.
The best multipurpose seed and fertiliser drill for all conditions.
Savings on all costs
- Low tractive resistance – easy to pull, even with tractors under 90 hp: significant fuel savings.
- Considerable fertiliser savings in fertiliser application.
- The machine detects cornering: more seed/fertilizer applied to the outside than the inside of the turn.
Consistently accurate seed sowing depth
- Field surface variations (ruts, furrows, etc.) do not affect seed sowing depth in the direction of travel or laterally.
- Hopper fill level does not impact seed sowing depth.
- Driving speed does not impact seed sowing depth.
Easy to adjust and use
- Working depth is easy to adjust in front of the coulter pair.
- ISOBUS-compatible, if desired.
- Easy and safe to use and maintain – proper platforms, stairs and rails.

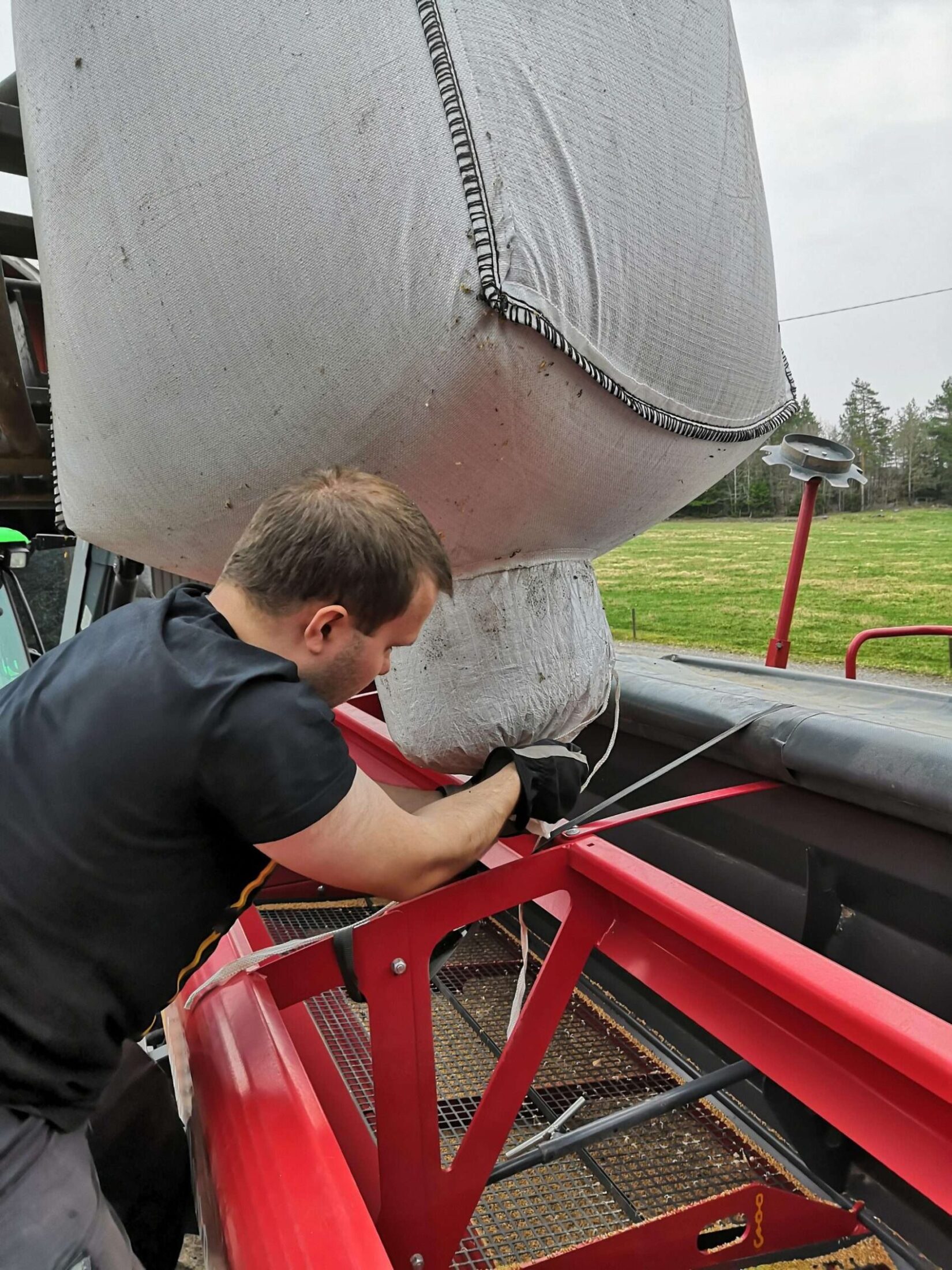

- Hoppers very easily discharged from the ends (e.g. into FIBCs)
Robust, debris-proof coulters
- Sturdy coulter arms.
- Coulter weighting can be adjusted while running. Maximum weighting 200 kg/coulter
| SNC 3000 | SNC 4000 | |
|---|---|---|
|
Working width cm |
300 |
400 |
|
Hopper capacity l |
4000 |
5500 |
|
Weight kg |
4100 |
5150 |
|
Tractive power requirement hp/kw
|
90/66 |
120/88 |
|
Dual-disc coulters
|
18 pcs, Ø 360/400 mm |
24 pcs, Ø 360/400 mm |
|
– Weighting range, kg |
40–200 |
40–200 |
|
– Runtime weighting adjustment |
Standard |
Standard |
|

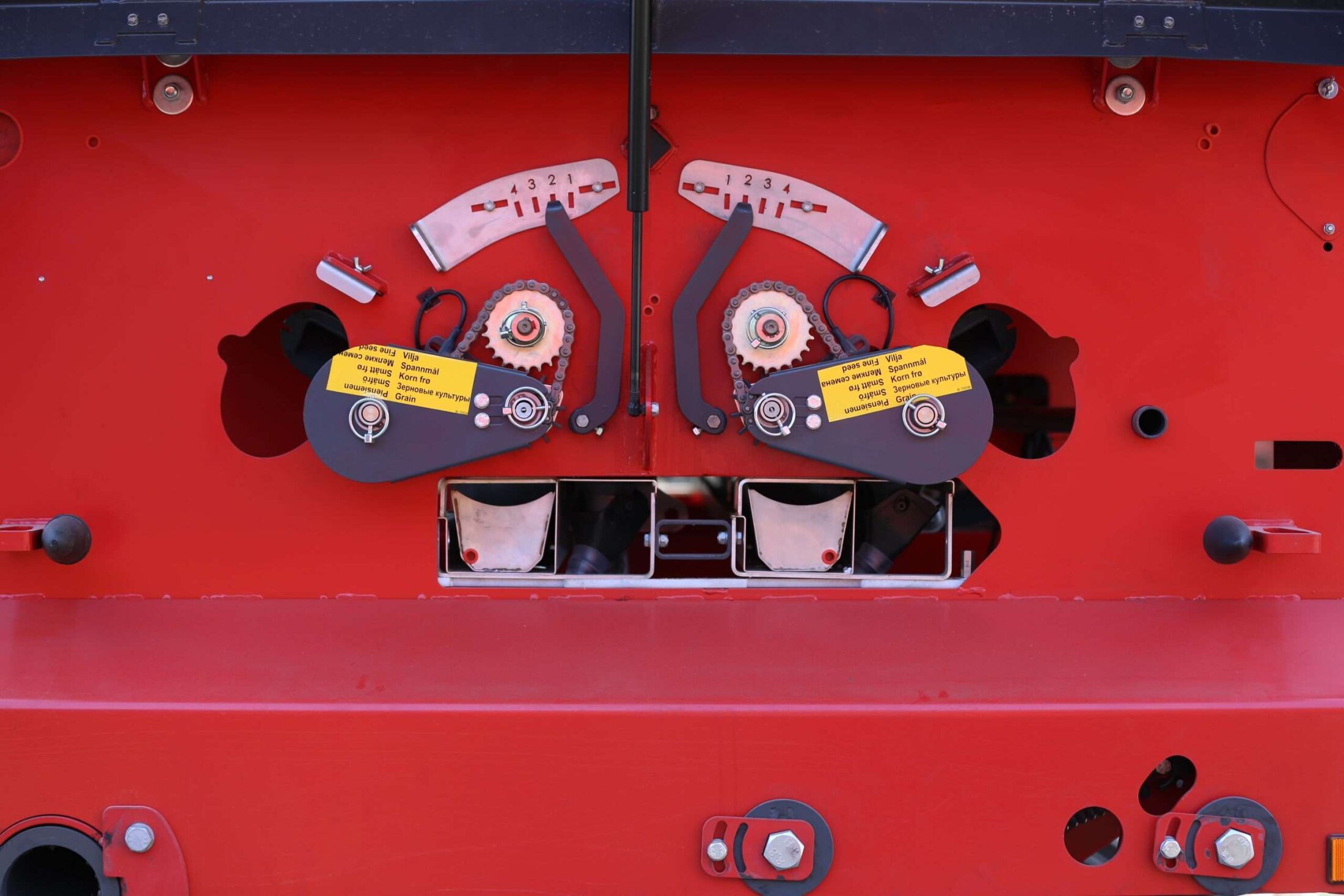

Fertilizer/seed feeder
|
fluted rollers/pins |
fluted rollers/pins |
|
– Bottom valves |
adjustable, spring-loaded |
adjustable, spring-loaded |
|
–Feeder usage |
electric motors (4 pcs) |
electric motors (4 pcs) |
|
Working depth adjustment wheels
|
9 pcs |
12 pcs |
|
– Tyre size |
18,5 x 8,50 – 8 AW |
18,5 x 8,50 – 8 AW |
|
Support wheels
|
9 pcs |
12 pcs |
|
– Tyre size |
280/70-18″ |
280/70-18″ |
Standard equipment
- 280/70-18″ support wheel gear
- Coulter pressure adjustment (40-200 kg) from controller
- Fertilizer and seed to the same coulter
- Double disc coulters 400/360
- Available also with disc coulters 360/360
- Self operating tarpaulin
- 8,5 X 8,5 -8 depth adjustment wheels
- Front and back railing
- Front and back step levels
- Injection furrow switchs for seed and fertilization
- Hydraulically operated rear harrow with automatic reverse protector
- Pull from the tractor’s hitch
- Electronic adjustment of seed and fertilizer
- Fertilizer and seed sieves
NOTICE! The standard equipment does not include an Isobus terminal
Optional equipment
 |
Hydraulic markers Makes the driving line for next pull, don’t need to estimate. |
 |
Grass seed unit Possible to drill grass seeds simultaneously with grain seeding and fertilizing. |
 |
Intermediate wheel packer Press the field surface between the tractor wheels. |
 |
Agitator for fertilizer and seed Ensure the material flow to feeding units. |
 |
Hydraulic front levelling board Finish the surface of the field for drilling. |
 |
CultiPack disc harrow Harrowing work simultaneously with drilling. |
| HD-front wheels | |
 |
7″ or 12″ ISOBUS terminal and wiring harness Can be used like a normal on-board computer in all tractors. |

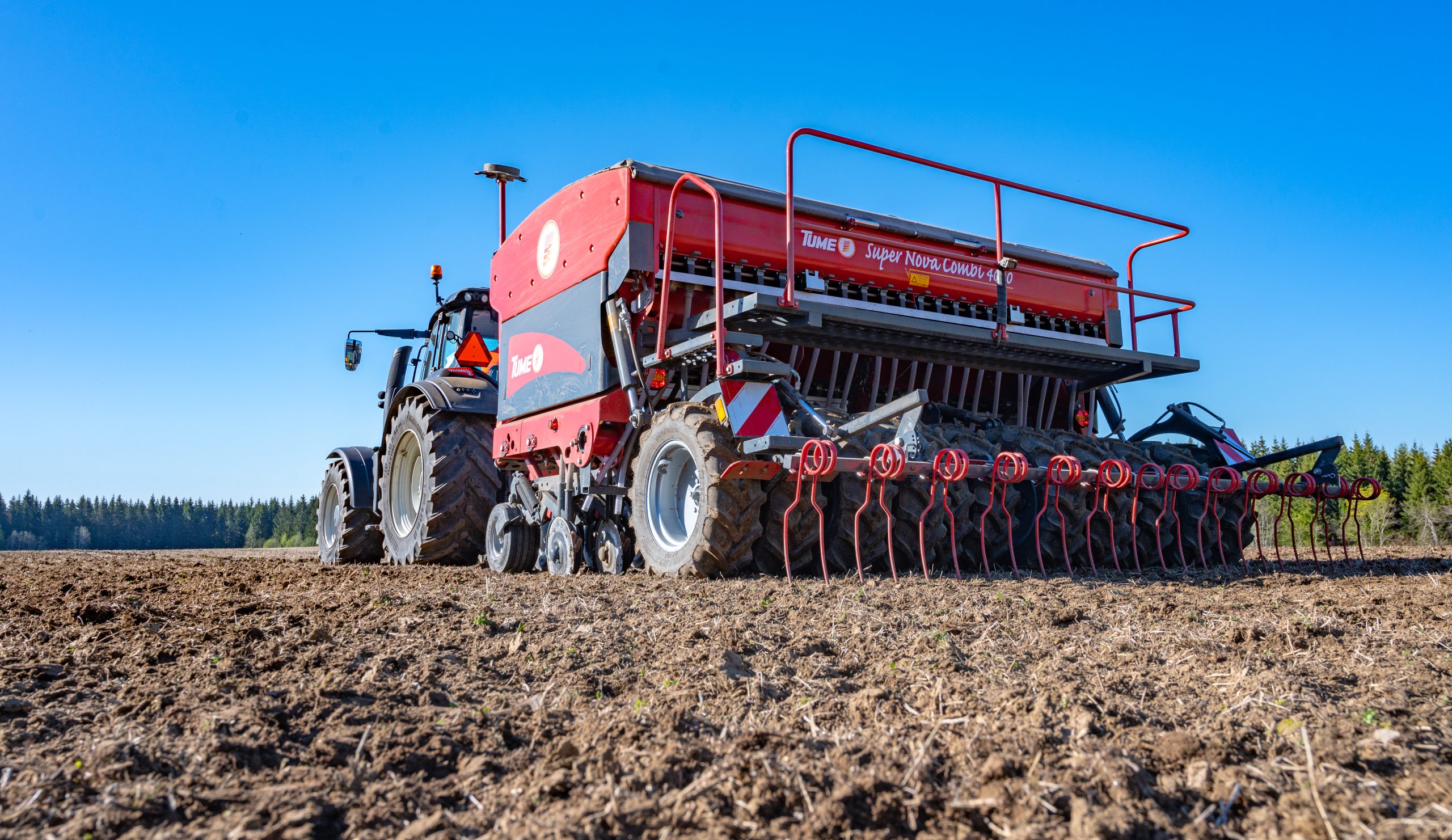

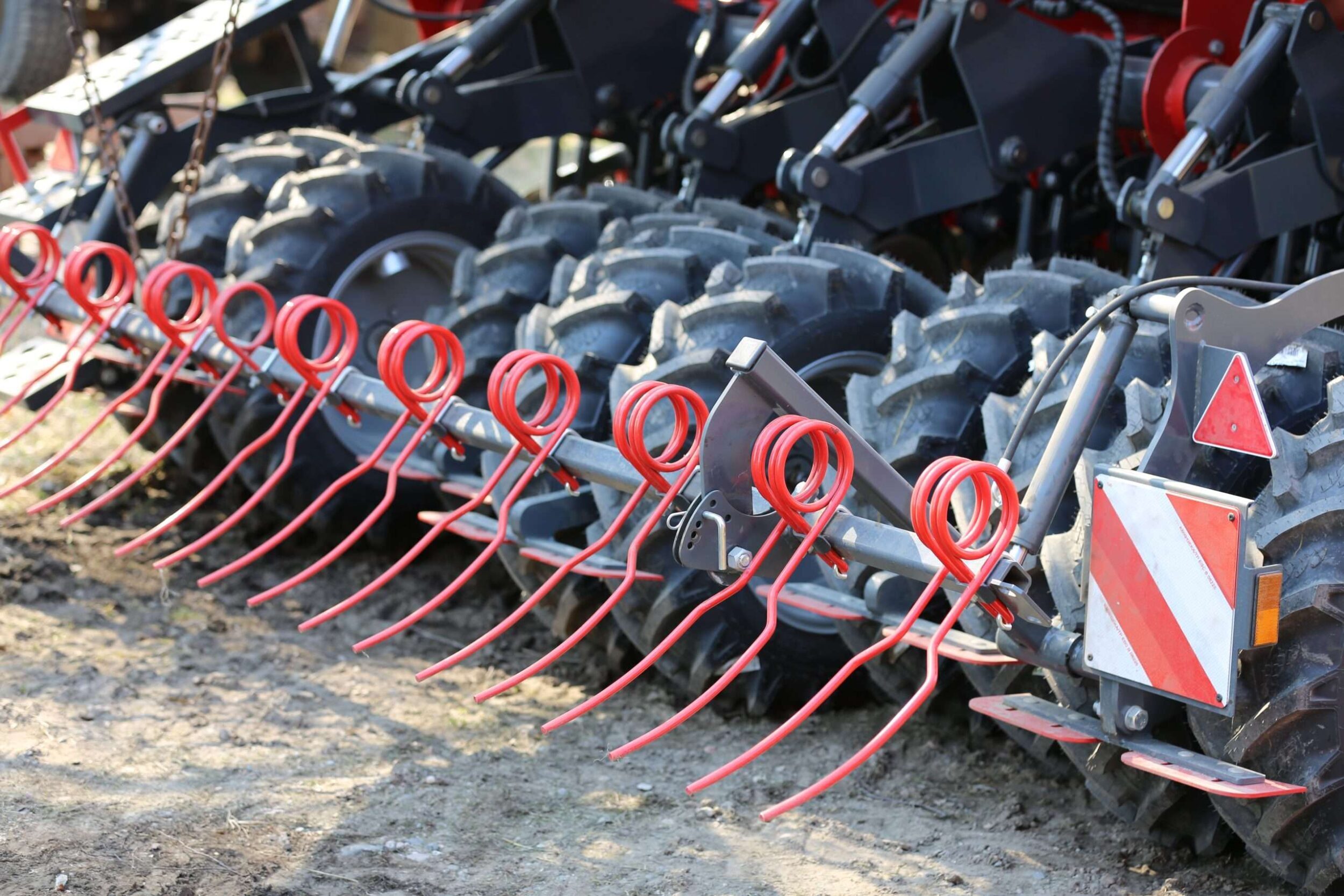

Hydraulic rear harrow
Included standard with the machine is a hydraulic rear harrow, which operates independently on cylinders. You can choose the function of the rear harrow using a remote control unit in the tractor cab: Leave it down at the field ends. Have it follow the raising and lowering of the machine. Or, leave the rear harrow up, even when sowing, such as when direct sowing on a thick straw bed.
Precise working depth

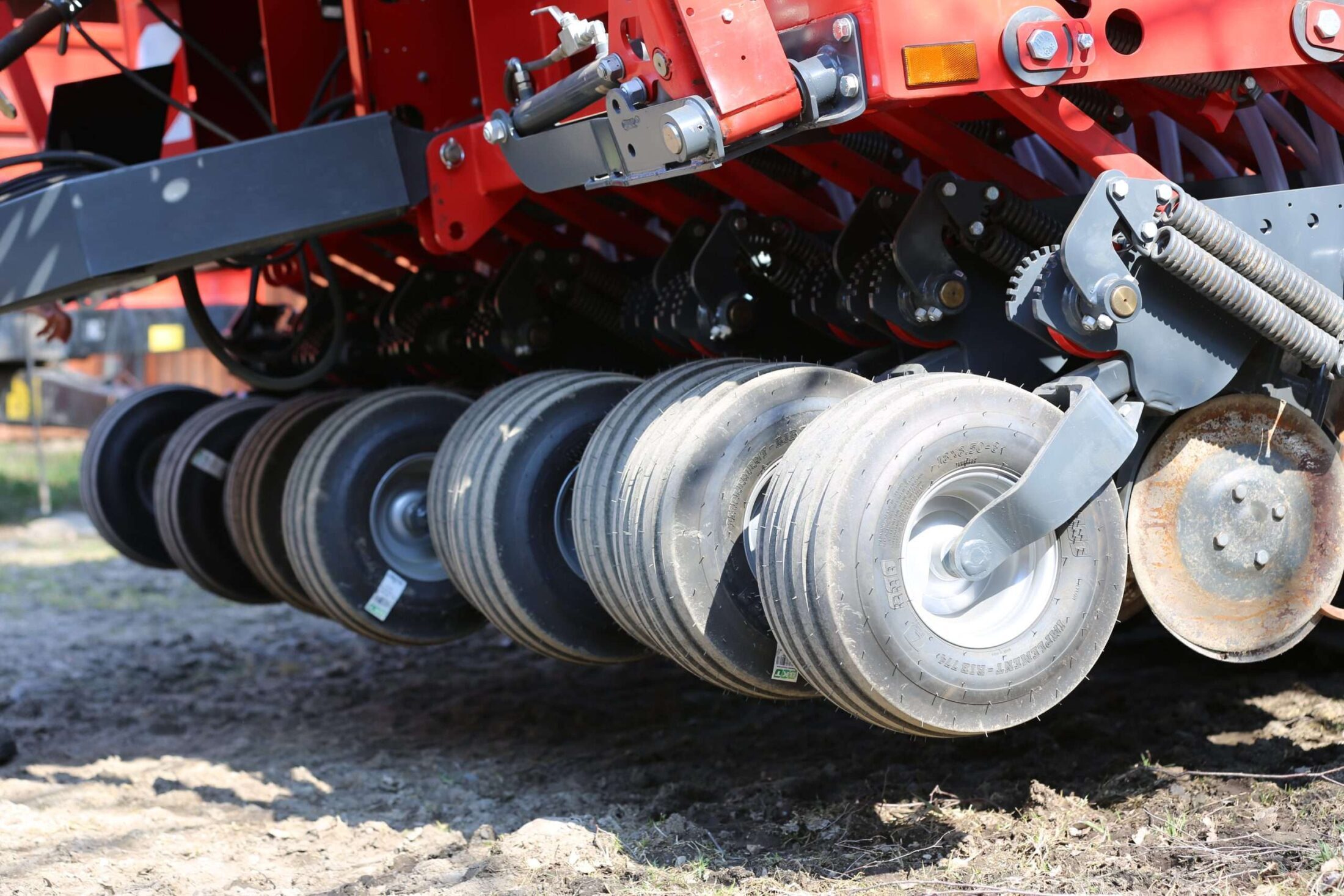

Field surfaces are not always dead flat. The coulters must be able to follow any contours they encounter. Tume’s Nova Combi guarantees the most consistent furrows. The same technology can also be found on the new model: one front wheel steers two coulters, as needed. This has a positive effect, in that the front wheel compacts the soil and presses any plant residue before sowing. The coulter opens and closes the sowing furrow more reliably.
Hydraulic markers
Makes the driving line for next pull, don’t need to estimate.
ISOBUS controller
The Super Nova Combi is an officially approved ISOBUS-compatible seed drill. Remote control of fertilizer, seed and hay seed / starter phosphorus.
Spacious and simple coulter structure
In Tume rear wheel seed drills the transport wheel is always located so that it works as a compaction wheel at the same time. This enables spacious and simple coulter structure. By this solution we can guarantee at least 40 kg compaction weight on each seed row even in direct seeding and with maximum coulter pressure. This is more than what most of the others can offer with a separate closing wheel solution.
Compare Super Nova Combi models and choose
| SNC 3000 | SNC 4000 | |
|---|---|---|
|
Working width, cm |
300 |
400 |
|
Hopper capacity, l |
4000 |
5500 |
|
Weight, kg |
2,5–35 |
2,5–35 |
|
Tractive power requirement hp/kw |
90/66 |
120/88 |
|
Dual-disc coulters |
18 pcs, Ø 360/400 mm |
24 pcs, Ø 360/400 mm |
|
– Weighting range, kg |
40–200 |
40–200 |
|
– Runtime weighting adjustment |
Standard |
Standard |
|
Fertiliser/seed feeder |
fluted rollers/pins |
fluted rollers/pins |
|
– Bottom valves |
adjustable, spring-loaded |
adjustable, spring-loaded |
|
–Feeder usage |
electric motors (4 pcs) |
electric motors (4 pcs) |
|
Working depth adjustment wheels |
9 pcs |
12 pcs |
|
– Tyre size |
18,5 x 8,50 – 8 AW |
18,5 x 8,50 – 8 AW |
|
Support wheels |
9 pcs |
12 pcs |
|
– Tyre size |
280/70-18″ |
280/70-18″ |
